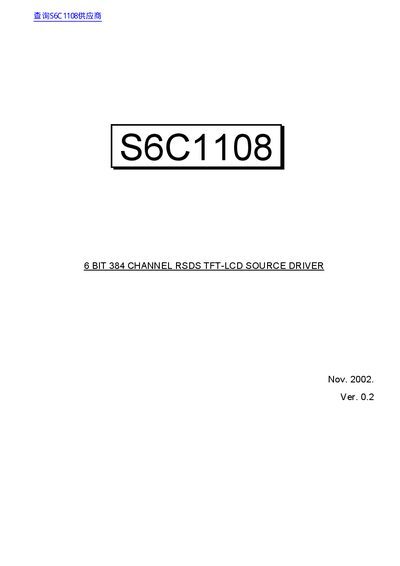

6 BIT 384 CHANNEL RSDS TFT-LCD SOURCE DRIVER is Samsung's S6C1108, which is a source driver suitable for Reduced Swing Differential Signaling(RSDS) digital interface. It converts 18-bit digital data into the analog voltage for 384 channels, charging each sub-pixel to the correct gray level corresponding to the digital value. The RSDS path to the panel timing controller contributes toward lowering radiated EMI, reducing system power consumption and eliminates one of the two pixel busses used in typical XGA, SXGA TFT LCD panels. This single 9-bit differential bus conveys the 18-bit color data for XGA, SXGA panels.
The S6C1108 is an active matrix LCD source driver designed for use with Reduced Swing Differential Signaling (RSDS) digital interfaces. It converts 18-bit digital data into analog voltage levels to drive up to 384 channels, suitable for XGA and SXGA TFT-LCD panels. The device supports both dot inversion and N-line inversion display modes.
| Logic supply voltage | 2.7 to 3.6 V |
|---|---|
| LCD driver supply voltage | 7.0 to 12.0 V |
| Output dynamic range | VSS2+0.2V to VDD2-0.2V |
| Maximum operating frequency | 85 MHz |
| Number of outputs | 384 outputs |
| Minimum RSDS input swing level | 100mV |
The S6C1108 uses Reduced Swing Differential Signaling (RSDS) for low power consumption and low EMI.
Yes, both dot inversion display and N-line inversion display are supported.
