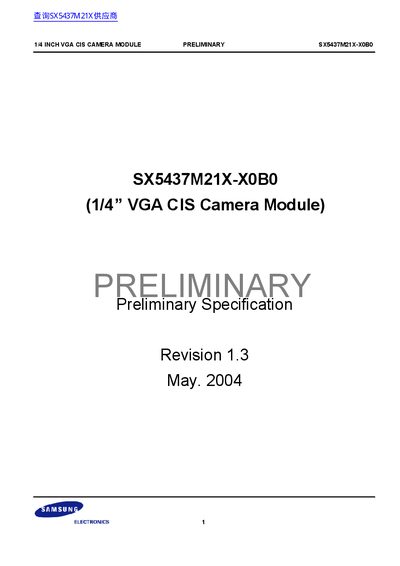

This document is about 1/4 inch VGA CIS camera module SX5437M21X-X0B0's preliminary specification
This document provides preliminary specifications for the Samsung SX5437M21X-X0B0, a fully functional 1/4 inch VGA CIS camera module. The system integrates an S5K437CX03 low-noise color CMOS image sensor and an S5C7323X image signal processor to produce high-quality digital video output in CCIR656 format at up to 30 frames per second.
| Effective Resolution | 640(H) X 480(V), VGA |
|---|---|
| Pixel Size | 5.6um x 5.6um |
| Module Dimensions | 85mm x 9.5mm x 6.6mm |
| Video Output Format | 8-bit ITU.R-656 (YCrCb) |
| Maximum Frame Rate | 30 fps |
| Operating Voltage | 2.8V |
The module produces digital video output with a maximum of 30 frames per second.
The camera system works with a single power supply voltage ranging from 2.55V to 3.1V.
The focus range starts at a distance of 22cm.
