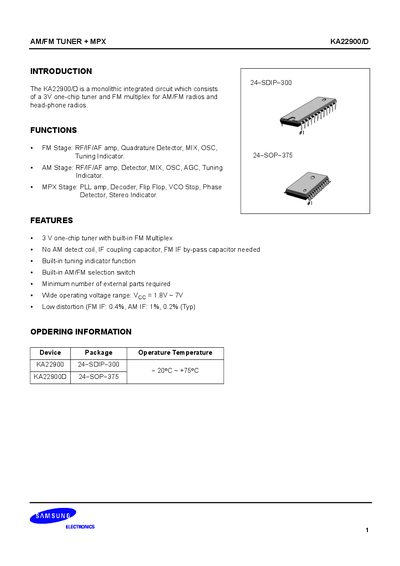

The document describes the KA22900/D as a monolithic integrated circuit designed for use in AM/FM radios and headphone radios. It functions as a 3V one-chip tuner that includes both an FM stage (RF/IF/AF amp, Quadrature Detector) and an AM stage (RF/IF/AF amp, Detector), along with an MPX stage for stereo decoding.
Key features highlighted include the elimination of external components such as AM detect coils and IF coupling capacitors. The device supports a wide operating voltage range from 1.8V to 7V and offers low distortion levels for both FM and AM signals.
| Operating Voltage Range | 1.8V ~ 7V |
|---|---|
| AM IF Total Harmonic Distortion | 1% (Typ) |
| Operating Temperature Range | -20°C ~ +75°C |
The device supports a wide operating voltage range from 1.8V to 7V.
No, it does not require an AM detect coil as it is a one-chip tuner.
The KA22900/D is available in 24-SDIP-300 and 24-SOP-375 packages.
