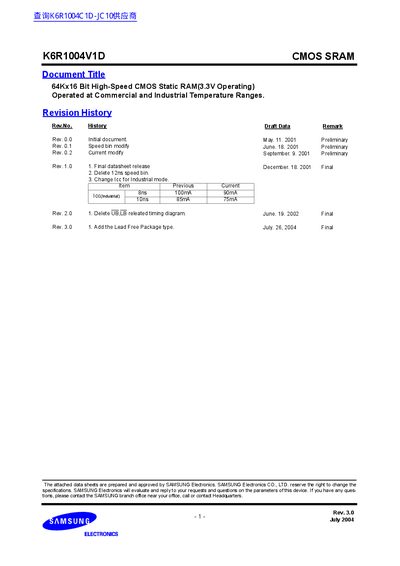

This document is about the specification of the 64Kx16 bit High-Speed CMOS Static RAM(3.3V Operating) Operated at Commercial and Industrial Temperature Ranges
The K6R1004V1D is a 1,048,576-bit static RAM organized as 262,144 words by 4 bits, designed for high-speed circuit applications. It operates with a single 3.3V power supply and features TTL-compatible inputs and outputs. The device is packaged in a 32-pin SOJ and supports both commercial (0°C to 70°C) and industrial (-40°C to 85°C) temperature ranges. It includes three-state outputs and no clock or refresh requirement.
| Memory Size | 64K x 16 Bit |
|---|---|
| Access Time | 8ns to 10ns |
| Temperature Range | Commercial: 0°C to 70°C, Industrial: -40°C to 85°C |
| Package Type | 32-pin SOJ |
| Power Supply | 3.3V |
| Standby Current | 20mA (Max.) |
| Operating Current | 80mA (Max.) for 8ns, 65mA (Max.) for 10ns |
The access time is 8ns to 10ns maximum.
It supports both commercial (0°C to 70°C) and industrial (-40°C to 85°C) temperature ranges.
It is packaged in a 32-pin SOJ.
