This document describes the features and characteristics of Samsung's K6T1008C2C family of low power CMOS static RAM, including support for various operating temperature ranges and package types for flexible system design, as well as low data retention voltage and low data retention current for battery backup operation.

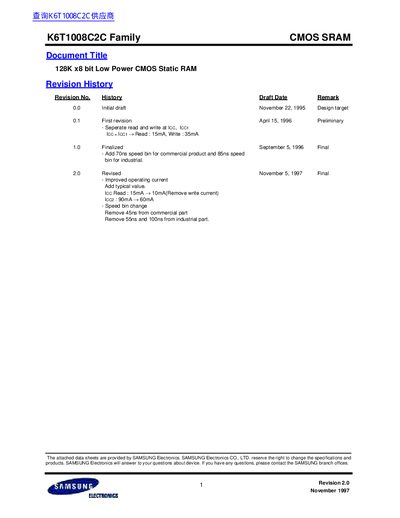

This document provides technical specifications for the Samsung K6T1008C2C family of 128K x8 bit Low Power CMOS Static RAMs. The devices are fabricated using advanced CMOS process technology and support various operating temperature ranges and package types, including 32-DIP, 32-SOP, and 32-TSOP.
| Organization | 128K x8 |
|---|---|
| Power Supply Voltage | 4.5~5.5V |
| Low Data Retention Voltage | 2V(Min) |
| Operating Temperature (Commercial) | 0~70°C |
| Operating Temperature (Industrial) | -40~85°C |
| Package Types | 32-DIP, 32-SOP, 32-TSOP |
The K6T1008C2C family has an organization of 128K x8 bit.
The minimum low data retention voltage is 2V.
Available packages include 32-DIP, 32-SOP, and 32-TSOP.
