MCCD2004S 350 mW High Voltage Switching Diode 240 Volts, Surface Mount SOT-23 Package, Capable of 350mWatts of Power Dissipation, Suited For Applications Requiring High Voltage Capability.

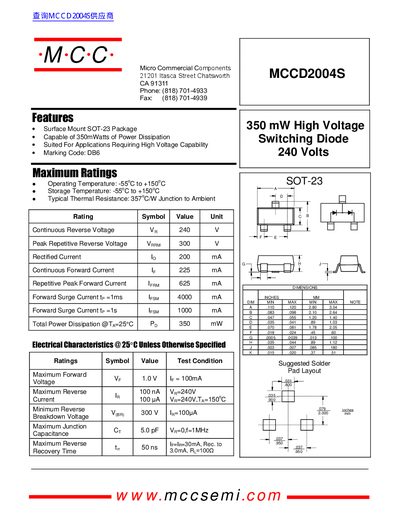

This document is a technical datasheet for the MCCD2004S, a surface mount SOT-23 package switching diode manufactured by Micro Commercial Components. The device is designed to handle 350mW of power dissipation and operates with a continuous reverse voltage rating of 240V.
| Continuous Reverse Voltage (VR) | 240 V |
|---|---|
| Peak Repetitive Reverse Voltage (VRRM) | 300 V |
| Rectified Current (Io) | 200 mA |
| Continuous Forward Current (If) | 225 mA |
| Total Power Dissipation (Pp) | 350 mW |
The device operates between -55°C and +150°C.
The maximum forward voltage is 1.0V at a current of 100mA.
