This data sheet introduces the features of RGP20A-20M model diodes, including maximum average forward current, maximum peak reverse voltage, maximum reverse recovery time, etc.

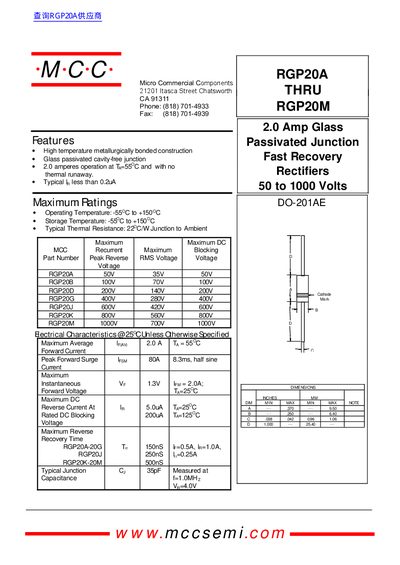

This document is a technical datasheet for the RGP20A through RGP20M series of 2.0 Amp Glass Passivated Junction Fast Recovery Rectifiers manufactured by Micro Commercial Components (MCC). The devices feature high temperature metallurgically bonded construction and are available in DO-201AE packages with blocking voltages ranging from 50V to 1000V.
| Package Type | DO-201AE |
|---|---|
| Operating Temperature Range | -55°C to +150°C |
| Storage Temperature Range | -55°C to +150°C |
| Typical Thermal Resistance (Junction to Ambient) | 22°C/W |
| Peak Forward Surge Current (8.3ms half sine) | 80A |
The devices operate from -55°C to +150°C.
The typical thermal resistance is 22°C/W from junction to ambient.
