SST39LF200A/400A/800A is a SuperFlash product introduced by Silicon Storage Technology, Inc., with single voltage read/write operations, high reliability, low power consumption, sector erase capability, block erase capability, fast read access time, latched address and data, fast erase and word programming, automatic write timing, internal VPP generation, end of write detection, CMOS I/O compatibility, JEDEC standard flash EEPROM pinouts and command sets, and 48-lead TSOP (12mm x 20mm) and 48-ball TFBGA (6mm x 8mm) packages.

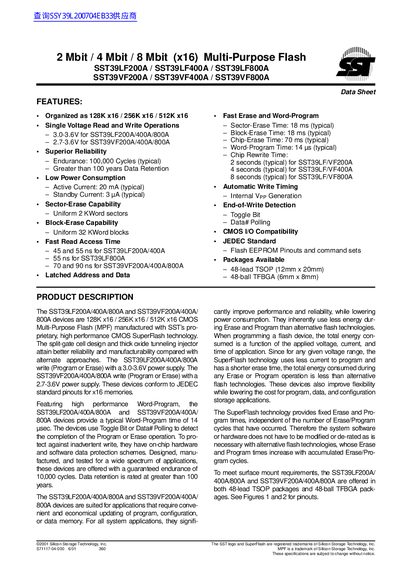

This document is a datasheet for the SST39LF200A/400A/800A and SST39VF200A/400A/800A Multi-Purpose Flash (MPF) devices. These chips are manufactured using Silicon Storage Technology's proprietary SuperFlash technology, offering high performance with a typical Word-Program time of 14 usec.
| Capacity Organization | 128K x 16 / 256K x 16 / 512K x 16 |
|---|---|
| Operating Voltage (LF Series) | 3.0-3.6V |
| Operating Voltage (VF Series) | 2.7-3.6V |
| Data Retention | >100 years |
| Endurance | 10,000 cycles (guaranteed) |
| Active Current | 20 mA (typical) |
| Standby Current | 3 uA (typical) |
| Sector-Erase Time | 18 ms (typical) |
| Chip-Erase Time | 70 ms (typical) |
The devices provide a typical Word-Program time of 14 usec.
Yes, the devices conform to JEDEC standard pinouts for x16 memories.
They are offered in both 48-lead TSOP and 48-ball TFBGA packages.
