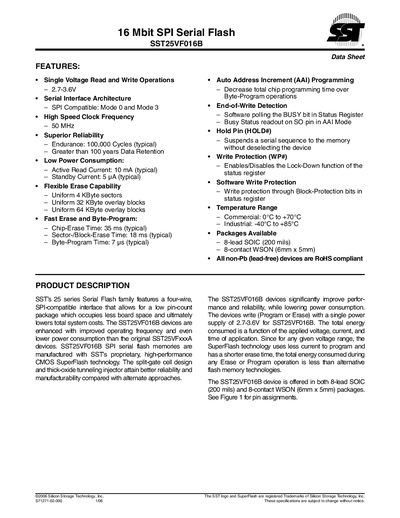

This datasheet introduces the features and characteristics of Silicon Storage Technology, Inc. SuperFlash 8-bit Serial Flash Memory
The SST25VF016B is a 16 Mbit SPI serial flash memory offering low‑power operation, high‑speed 50 MHz clocking, and robust reliability. It supports single‑voltage read/write (2.7‑3.6 V) and provides uniform erase sectors of 4 KB, 32 KB and 64 KB.
The device is available in 8‑lead SOIC and 8‑contact WSON packages and includes features such as a HOLD# pin for pausing communication, software write protection, and a status register that reports busy, write‑enable, and block‑protection states.
| Memory Capacity | 16 Mbit |
|---|---|
| Endurance | 100,000 cycles (typical) |
| Data Retention | >100 years |
| Active Read Current | 10 mA (typical) |
| Standby Current | 5 µA (typical) |
| Chip‑Erase Time | 35 ms (typical) |
| Sector/Block‑Erase Time | 18 ms (typical) |
| Byte‑Program Time | 7 µs (typical) |
| Commercial Temperature Range | 0 °C to +70 °C |
| Industrial Temperature Range | -40 °C to +85 °C |
| Package Types | 8‑lead SOIC (200 mil) and 8‑contact WSON (6 mm × 5 mm) |
A chip‑erase completes in about 35 ms (typical).
The SST25VF016B is offered in an 8‑lead SOIC and an 8‑contact WSON package.
