This is a Zener diode with high reliability, large power dissipation PD and wide voltage range VZ = 5.1V to 56.0V

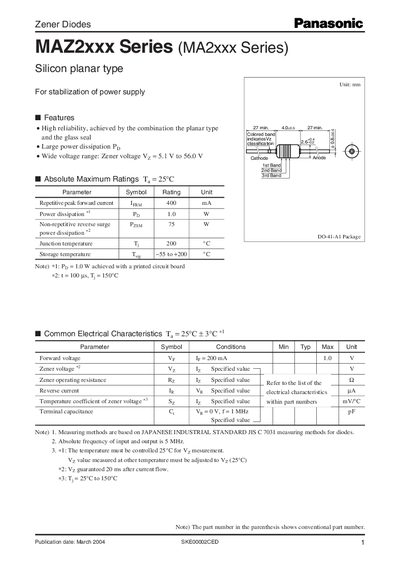

This document is a technical datasheet for the Panasonic MAZ2xxx Series of silicon planar type Zener diodes. These components are designed for power supply stabilization and feature high reliability achieved through a combination of planar technology and glass sealing.
The datasheet provides detailed electrical characteristics, including absolute maximum ratings such as repetitive peak forward current (400 mA) and power dissipation (1.0 W). It lists specific parameters like Zener voltage ranges from 5.1 V to 56.0 V, temperature coefficients, and terminal capacitance for various part numbers within the series.
| Package Type | DO-41-Al Package |
|---|---|
| Repetitive peak forward current | 400 mA |
| Power dissipation | 1.0 W |
| Non-repetitive reverse surge power dissipation | 75 W |
| Storage temperature | -55 to +200 °C |
| Zener voltage range | 5.1 V to 56.0 V |
The components use a DO-41-Al Package.
The maximum power dissipation (Pp) is rated at 1.0 W.
The absolute maximum junction temperature (Tj) is 200 °C.
The Zener voltage (Vz) is guaranteed 20 ms after current flow.
