This document describes the clock frequency, supply voltage, operating temperature, and other characteristics of the 360 panel display units. It also provides detailed information about the product's dimensions, display colors, brightness, etc.

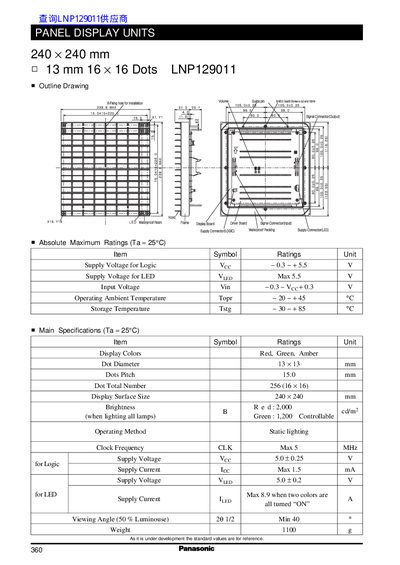

This document is a technical datasheet for the Panasonic LNP129011 Panel Display Unit. It provides outline drawings and absolute maximum ratings for the device.
The main specifications section details the display characteristics, including red, green, and amber colors with a 13mm dot diameter and 15.0mm pitch. Electrical parameters such as supply voltage (5V), clock frequency (max 5 MHz), and viewing angles are also listed.
| Dot Total Number | 256 (16 x 16) |
|---|---|
| Display Surface Size | 240 x 240 mm |
| Brightness Red | 2,000 cd/m2 |
| Clock Frequency Max | 5 MHz |
| Operating Ambient Temperature | -20~+45 °C |
The unit displays Red, Green, and Amber.
The maximum clock frequency is 5 MHz.
