MA2SV03 is a variable capacitance diode from MACOM. It features large capacitance ratio, small current and is suitable for VCO applications.

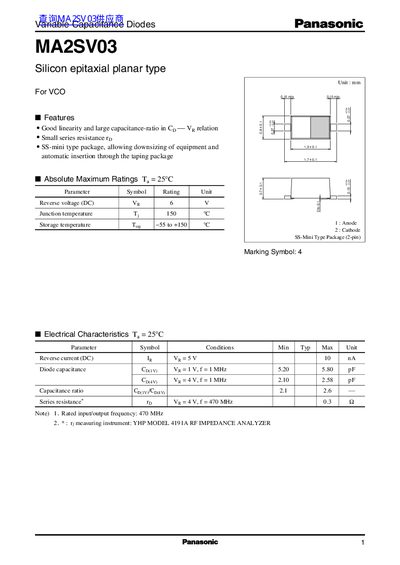

This document provides technical specifications and characteristics for the Panasonic MA2SV03, a silicon epitaxial planar type variable capacitance diode. The device is specifically designed for use in Voltage Controlled Oscillators (VCO) and features good linearity with a large capacitance-ratio.
| Product Type | Silicon epitaxial planar type |
|---|---|
| Application | For VCO |
| Package Type | SS-mini type package (2-pin) |
| Reverse Voltage (DC) Max | 6 V |
| Junction Temperature Max | 150 °C |
| Storage Temperature Range | -55 to +150 °C |
| Reverse Current (DC) Max | 10 nA |
The rated input/output frequency is 470 MHz.
A YHP MODEL 4191A RF IMPEDANCE ANALYZER was used.
