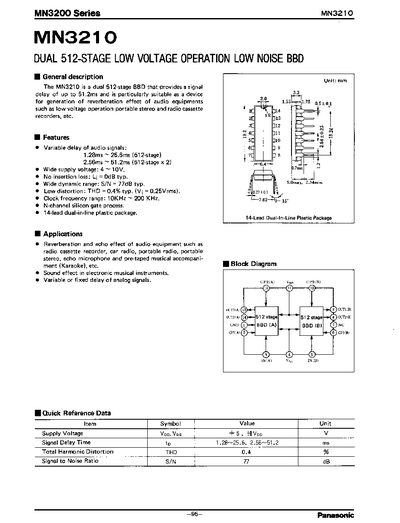

The document describes the Panasonic MN3210, a dual 512-stage Bucket-Brigade Device (BBD) designed for generating reverberation effects in audio equipment. It supports variable delay times ranging from 1.28ms to 51.2ms and operates with a wide supply voltage range of 4V to 10V.
| Signal Delay Time (512-stage) | 1.28 ~ 25.6 ms |
|---|---|
| Supply Voltage | 4 ~ 10V |
| Total Harmonic Distortion (THD) | 0.4% typ. |
| Signal to Noise Ratio | 77 dB typ. |
| Clock Frequency Range | 10K Hz ~ 200 KHz |
It is suitable for generating reverberation effects in audio equipment such as portable stereos and radio cassette recorders.
The device uses a 14-lead dual-in-line plastic package.
