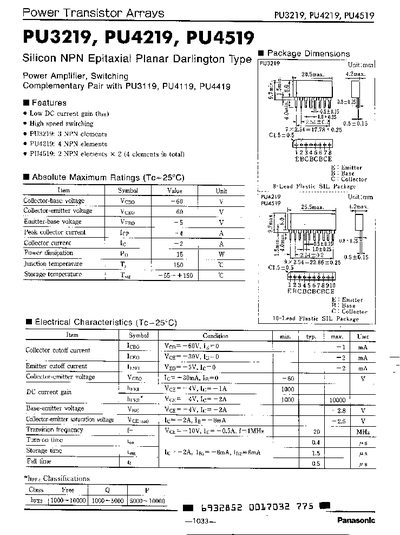

This document is a technical datasheet for the Panasonic PU3219, which consists of 3 NPN elements. It belongs to the Power Transistor Arrays family, specifically Silicon NPN Epitaxial Planar Darlington Type devices designed for power amplifier and switching applications.
The datasheet provides absolute maximum ratings such as a collector-base voltage of 25.5V max and a peak collector current of 74A. It also details electrical characteristics including DC current gain, transition frequency up to 20 MHz, and various timing parameters like turn-on time.
| Number of NPN elements | 3 |
|---|---|
| Device Type | Silicon NPN Epitaxial Planar Darlington Type |
| Peak collector current | 74 A |
| Collector current (continuous) | -2 A |
| Power dissipation | 15 W |
| Junction temperature (max) | 150 C |
| DC current gain (typical) | 1000 to 10000 |
| Transition frequency (min) | 20 MHz |
The device uses a 10-Lead Plastic SIL Package.
Yes, it is a complementary pair with models PU3119, PU4119, and PU4419.
The storage temperature ranges from -65°C to +150°C.
