Panasonic PU3216/4216/4516 Power Transistor Arrays Datasheet

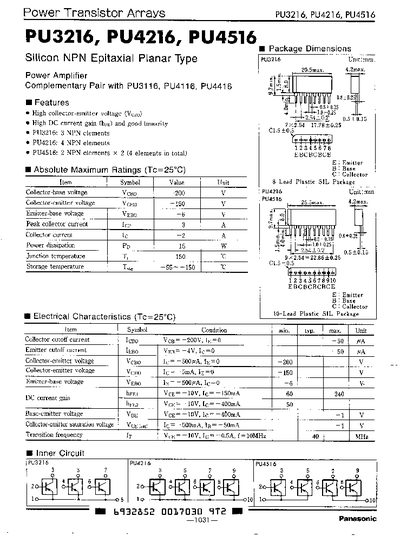

Panasonic PU3216/4216/4516 Power Transistor Arrays Datasheet - cover page

Brand: Panasonic
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 2
File format: PDF
File size: 161 KB
Published: 06 June, 2012
Updated: 06 June, 2012
MD5 checksum: 2884D0D782A85CF72C1D9F15894EE94F
PDF: Panasonic PU3216/4216/4516 Power Transistor Arrays Datasheet PDF

About this manual

This document provides technical specifications for the Panasonic PU3216, PU4216, and PU4516 Power Transistor Arrays. These devices are Silicon NPN Epitaxial Planar Type components designed as complementary pairs with the PU3116, PU4116, and PU4416 series.

What's inside

Features
Absolute Maximum Ratings
Package Dimensions
Electrical Characteristics
Inner Circuit
Safe Operation Area

Specifications

Emitter-base voltage (VEBO)	-6 V
Collector current (Ic)	-2 A

Frequently asked questions

How many NPN elements are contained in the PU4516 model?

The PU4516 contains a total of 4 NPN elements.
