This document is a parameter table of LN533RAMR series three digit digital tube

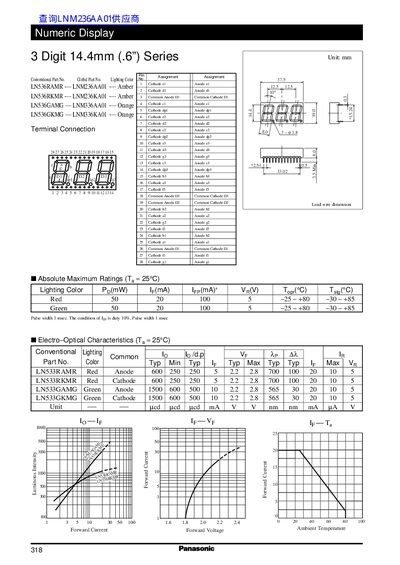

This document provides technical information for the Panasonic 3 Digit 14.4mm (.6") Series Numeric Display Units, specifically models LNM236AA01 through LNM336KA01. It details part numbers, conventional and global assignments, lighting colors (Amber and Orange), and terminal connection configurations.
| Display Type | Numeric Display |
|---|---|
| Lighting Colors | Amber, Orange |
| Cathode/Anode Types | Common Anode, Common Cathode |
| Operating Temperature Range (Red) | -25 ~ +80 °C |
| Red Forward Voltage (Typ) | 2.2 V |
| Green Forward Voltage (Typ) | 2.2 V |
The available lighting colors are Amber and Orange.
The maximum ambient temperature for Red LEDs is +80 °C.
The typical forward voltage is 2.2 V for both Red and Green LEDs.
