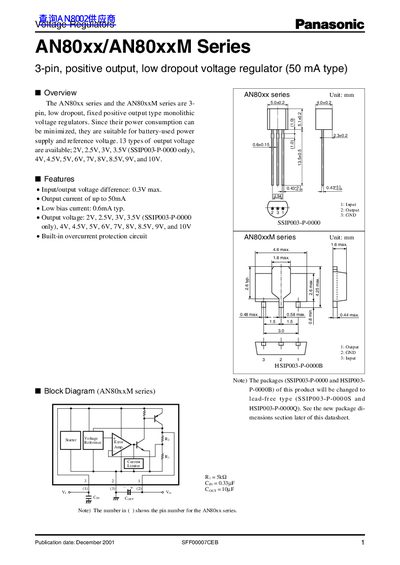

The AN80xx series and the AN80xxM series are 3-pin, low dropout, fixed positive output type monolithic voltage regulators. Since their power consumption can be minimized, they are suitable for battery-used power supply and reference voltage. 13 types of output voltage are available; 2V, 2.5V, 3V, 3.5V (SSIP003-P-0000 only), 4V, 4.5V, 5V, 6V, 7V, 8V, 8.5V, 9V, and 10V.
The AN80xx and AN80xxM series are monolithic voltage regulators designed for battery-powered applications where minimizing power consumption is critical. They feature a 3-pin package, an output current of up to 50mA, and a low bias current of approximately 0.6mA typical.
These regulators offer 13 different fixed output voltages ranging from 2V to 10V. Key features include built-in overcurrent protection circuits, a maximum input/output voltage difference of 0.3V, and operation within an ambient temperature range of -30°C to +80°C for the standard series.
| Output current | up to 50mA |
|---|---|
| Bias current | 0.6mA typ. |
| Input/output voltage difference | 0.3V max. |
| Operating ambient temperature (AN80xx) | -30 to +80 °C |
| Power dissipation | 650 mW |
