The CP1500, 2500, 3500 series high current silicon bridge rectifiers have a plastic case with a heatsink, surge overload ratings up to 400 amps, and a 94V-O flammability rating.

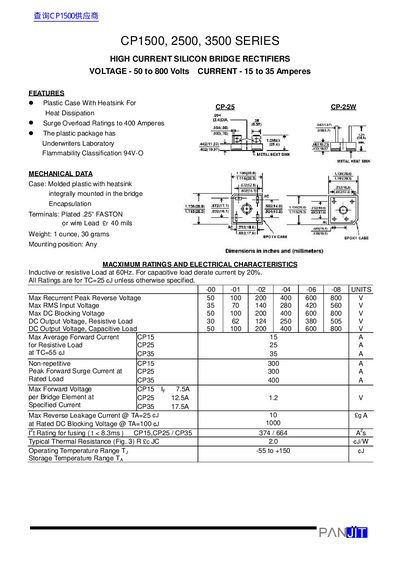

This document provides technical specifications for the PANJIT CP1500, CP2500, and CP3500 series of high current silicon bridge rectifiers. The components are available in both plastic case with heatsink (CP-25) and metal heat sink configurations.
| Max Recurrent Peak Reverse Voltage | 50 to 800 V |
|---|---|
| Max RMS Input Voltage | 35 to 560 V |
| Max Average Forward Current (CP15) | 15 A |
| Max Average Forward Current (CP25) | 25 A |
| Non-repetitive Peak Forward Surge Current | 300 A (CP15/CP25) |
| Operating Temperature Range | -55 to +150 C |
The maximum average forward current for the CP3500 is 35 Amperes.
You must derate the current by 20% for a capacitive load.
The operating temperature range is -55 to +150 degrees Celsius.
