CNC7S101, CNZ3182, CNC7T101, CNC1H101 are ON Semiconductor's optoisolators that support AC input, with high I/O isolation voltage, high current transfer ratio (CTR) and high response speed.

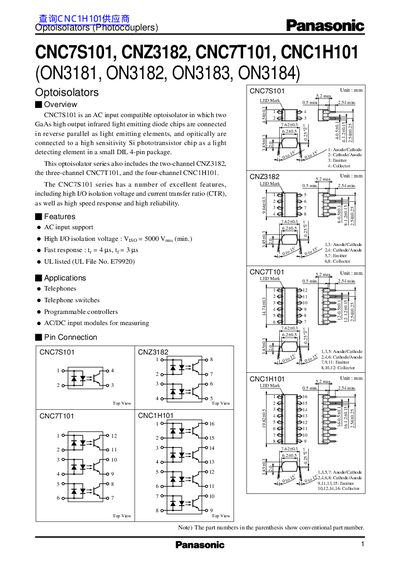

This document provides technical specifications and application information for the Panasonic CNC7S101 series of optoisolators (photocouplers). The series includes single-channel (CNC7S101), two-channel (CNZ3182), three-channel (CNC7T101), and four-channel (CNC1H101) variants.
| Isolation Voltage (Viso) | 5000 Vrms (min.) |
|---|---|
| Forward Current (DC) IF | +50 mA |
| Collector Cutoff Current ICBO | 5 nA max |
| DC Current Transfer Ratio (CTR) | 20 to 300 % |
| Operating Ambient Temperature | -30 to +100 °C |
They are suitable for telephones, telephone switches, programmable controllers, and AC/DC input modules.
The transfer rise time (tr) is 4 microseconds.
