This document describes the features and characteristics of KDR367E Schottky barrier diode, including low forward voltage and small package.

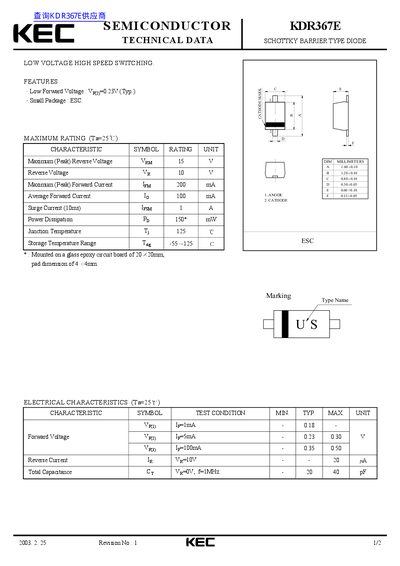

This document is a technical datasheet for the KEC KDR367E Schottky Barrier Diode. It details the device's features, including low forward voltage and small package size (SMA), along with maximum ratings such as peak reverse voltage of 15V and average forward current of 100mA.
The datasheet provides comprehensive electrical characteristics, including typical forward voltage drops at various currents, reverse leakage current limits, and total capacitance. It also includes graphical data illustrating the relationship between forward/reverse voltage and current, as well as performance curves for temperature effects on reverse current and power dissipation.
| Peak Reverse Voltage (Vrrm) | 15 V |
|---|---|
| Reverse Voltage (Vr) | 10 V |
| Peak Forward Current (Ifm) | 200 mA |
| Average Forward Current (Ip) | 100 mA |
| Surge Current (Iesm) | 1 A |
| Power Dissipation (Pv) | 150 mW |
| Junction Temperature (Tj) | 125 C |
| Typical Forward Voltage @ 1mA | 0.18 V |
| Typical Forward Voltage @ 5mA | 0.23 V |
| Total Capacitance (Ct) | 40 pF |
The typical forward voltage is 0.23V at a current of 5mA.
The maximum surge current (10ms) is rated at 1 A.
The junction temperature rating is up to 125 C.
