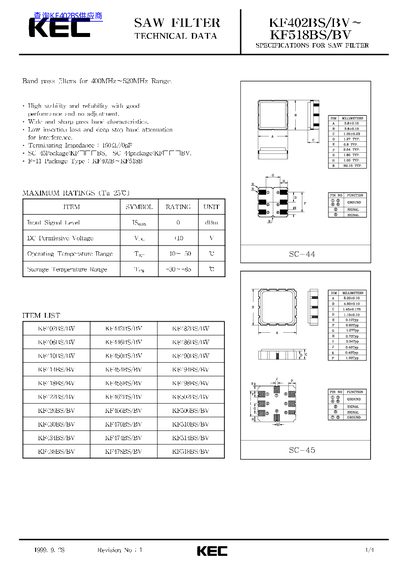

This document provides technical data for a series of Surface Acoustic Wave (SAW) filters manufactured by KEC. The product line covers center frequencies ranging from 402 MHz to 518 MHz.
Key features include high stability with no adjustment required, wide and sharp pass band characteristics, low insertion loss, and deep stop band attenuation. The filters are available in SC-45 and SC-44 packages.
| Terminating Impedance | 150Ω // 0pF |
|---|---|
| Input Signal Level Max | 0 dBm |
| DC Permissive Voltage | 110 Vv |
| Operating Temperature Range | -10~+50 C |
| Storage Temperature Range | -30~ +85 C |
The terminating impedance is specified as 150Ω in parallel with 0pF.
The filters are available in SC-45 and SC-44 packages depending on the specific model.
