SMAB34 is a Schottky diode with low power loss and high efficiency. It is suitable for low voltage, high frequency inverters, freewheeling and polarity protection applications.

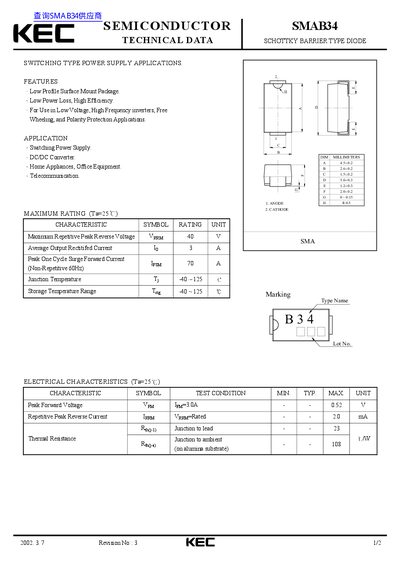

This document is a technical data sheet for the SMAB34 Schottky Barrier Type Diode. It provides specifications including maximum ratings, electrical characteristics, and application information intended for use in switching power supplies, DC/DC converters, home appliances, office equipment, and telecommunications.
The datasheet includes mechanical dimensions for the low profile surface mount package and graphical representations of forward voltage versus current, surge current capabilities, and average forward power dissipation limits.
| Peak Forward Voltage (VFM) | 0.52 V |
|---|---|
| Repetitive Peak Reverse Current (IRRM) | 2.0 mA |
| Maximum Repetitive Peak Reverse Voltage (VRRM) | 40 V |
| Average Output Rectified Current (IO) | 3 A |
| Peak One Cycle Surge Forward Current (IFSM) | 70 A |
| Junction Temperature Range (Tj) | -40 to 125 C |
It is intended for use in switching power supplies, DC/DC converters, home appliances, office equipment, and telecommunications.
It uses a Low Profile Surface Mount Package.
