This document provides technical data for KDZ series semiconductor voltage regulator diodes, including constant voltage regulation and reference voltage applications. The product features a small package and a nominal voltage tolerance of about 6%.

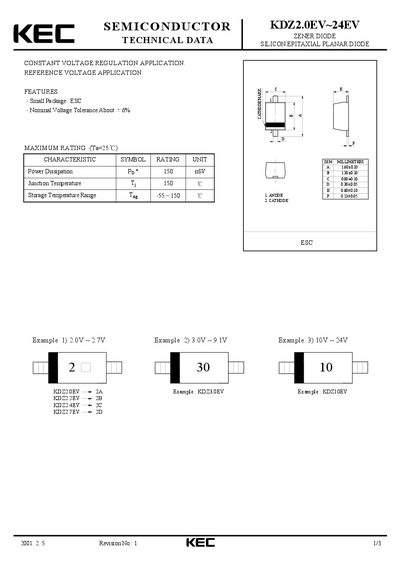

This document provides technical specifications for the KEC KDZ2.0EV~24EV series of Zener Diodes. These are silicon epitaxial planar diodes designed specifically for constant voltage regulation and reference voltage applications.
The datasheet details maximum ratings, electrical characteristics including zener voltage tolerance, dynamic impedance, reverse current, and power dissipation. It also includes a graphical representation of the relationship between ambient temperature and zener voltage.
| Product Type | Silicon Epitaxial Planar Diode |
|---|---|
| Application | Constant Voltage Regulation, Reference Voltage Application |
| Package Type | ESC |
| Nominal Voltage Tolerance | About +6% |
| Power Dissipation (Ta=25°C) | 150 mW |
| Junction Temperature (Tj) | 150 °C |
| Storage Temperature Range (Tag) | -55~150 °C |
The series covers a nominal voltage range from 2.0V to 24V.
The maximum power dissipation at Ta=25°C is 150 mW.
