This document describes the features and characteristics of the KTC811U epitaxial planar NPN transistor, including super-mini mold package, temperature response, and high pairing property in hFE.

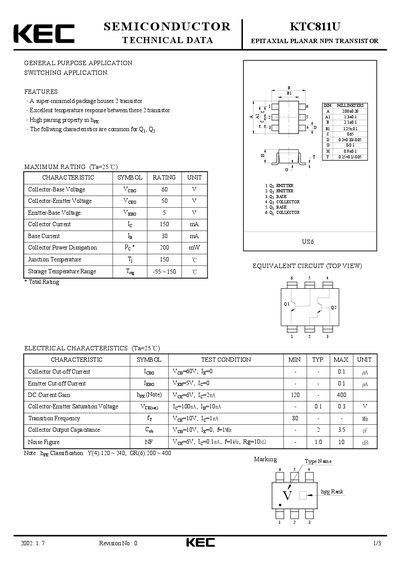

The document is a technical datasheet for the KEC KTC811U, an Epitaxial Planar NPN Transistor designed for general purpose and switching applications. The device is housed in a super-minimold package containing two transistors (Q1 and Q2) with excellent temperature response between them.
| Storage Temperature Range | -55~ 150 c |
|---|
The transition frequency (fT) ranges from a minimum of 80 MHz to no maximum specified limit.
The collector output capacitance (Cob) ranges from a minimum of 2 pF to a maximum of 3.5 pF.
