KDR393 is a Schottky diode with low forward voltage and low reverse current.

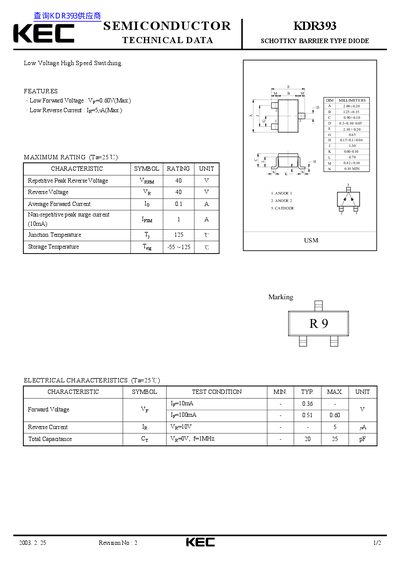

This document is a technical datasheet for the KEC KDR393 Schottky barrier type diode. It highlights key features such as low forward voltage and low reverse current, suitable for low voltage high speed switching applications.
The datasheet provides maximum ratings including repetitive peak reverse voltage of 40V and average forward current of 0.1A. Electrical characteristics specify a typical forward voltage of 0.51V at 10mA and a total capacitance of 25pF.
| Repetitive Peak Reverse Voltage (Vrrm) | 40 V |
|---|---|
| Reverse Voltage (Vr) | 40 V |
| Average Forward Current (Io) | 0.1 A |
| Non-repetitive peak surge current (I rms) | 1 A |
| Junction Temperature (Tj) | 125 C |
| Storage Temperature (Tstg) | -55 ~ 125 C |
| Reverse Current (Ip) at Vr=10V | Max. 5 pA |
| Total Capacitance (Ct) | 25 pF |
The maximum repetitive peak reverse voltage is 40 V.
The maximum average forward current is 0.1 A.
