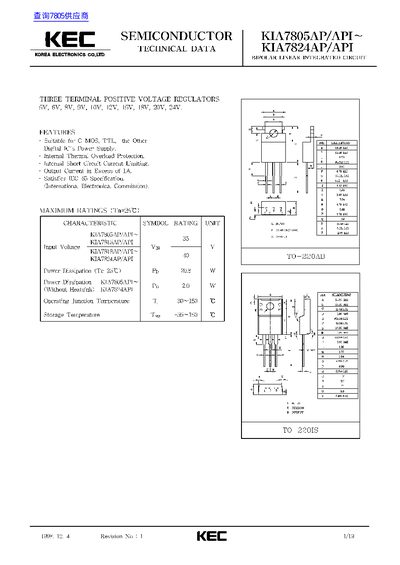

This document provides technical specifications for the KEC KIA7805AP/API through KIA7824AP/API series of bipolar linear integrated circuits. These are three-terminal positive voltage regulators available in output voltages ranging from 5V to 24V, designed for use as power supplies for CMOS, TTL, and other digital ICs.
| Output Voltage Range | 5V, 6V, 8V, 9V, 10V, 12V, 15V, 18V, 20V, 24V |
|---|---|
| Output Current | In Excess of 1A |
| Power Dissipation (Without Heatsink) | 20.8 W |
| Operating Junction Temperature | -30 to 150 C |
| Short Circuit Current Limit (Typical) | 1.5 A |
The maximum power dissipation without a heatsink is 20.8 W.
