KIA378R05PI~KIA378R15PI is a low dropout voltage regulator from KIA company in Korea. The output voltage is 5V, 6V, 8V, 9V, 10V, 12V, 15V, the input voltage range is 35V, the output current is 3A, and it has overcurrent protection, overheating protection and ON/OFF control functions.

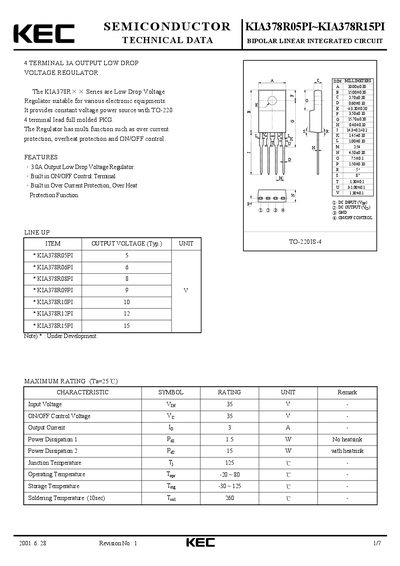

This document provides technical specifications for the KEC KIA378R05PI through KIA378R15PI series. These are bipolar linear integrated circuits designed as 4-terminal, 3A output low drop voltage regulators suitable for various electronic equipment.
The datasheet details electrical characteristics such as output voltage regulation, line and load regulation, ripple rejection, and quiescent current. It also includes maximum ratings for input voltage, power dissipation with and without heatsinks, and operating temperatures.
| Output Current | 3 A |
|---|---|
| Power Dissipation (No heatsink) | 15 W |
| Operating Temperature | -20~80 Cc |
| Package Type | TO-220 SS 4 terminal lead full molded PKG |
The available output voltages range from 5V to 15V.
Yes, it includes built-in over-current and over-heat protection functions.
