This document describes the features and characteristics of KTA1296 in power amplifier and power switching applications, including low saturation voltage and complementary properties to KTC3266.

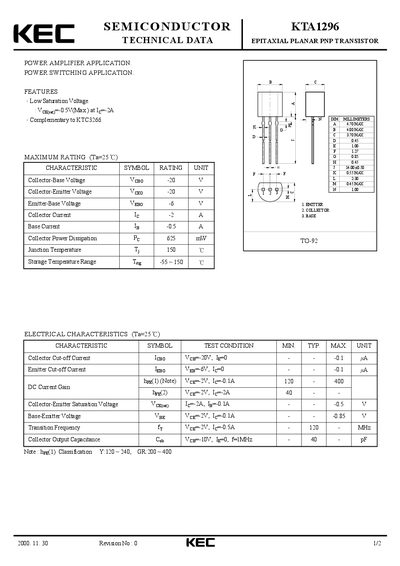

This document is a technical datasheet for the KTA1296, an epitaxial planar PNP transistor manufactured by KEC. It provides maximum ratings, electrical characteristics, and application information suitable for power amplifiers and power switching circuits.
The datasheet includes detailed graphs illustrating collector current versus voltage, safe operating area curves, and thermal derating factors. Key specifications include a collector-emitter voltage of -20V, a collector current of -2A, and a maximum junction temperature of 150°C.
| Collector Power Dissipation | 625 mw |
|---|---|
| Junction Temperature | 150 Cc |
The KTA1296 is designed for power amplifier and power switching applications.
Yes, it is complementary to the KTC3266 model.
