CY7C1041 is a high-performance CMOS static RAM organized as 262,144 words by 16 bits. It features high speed, low power consumption, and easy memory expansion.

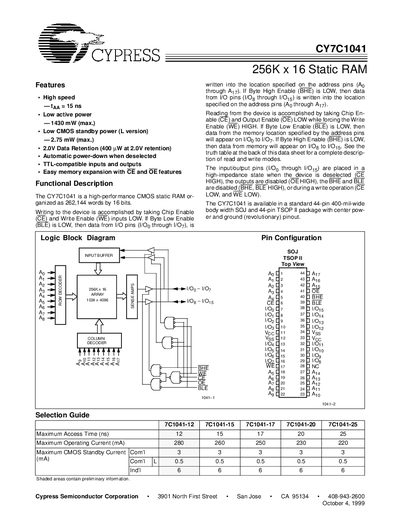

The document describes the CY7C1041, a high-performance GMOS static RAM organized as 262,144 words by 16 bits. It features automatic power-down when deselected, TTL-compatible inputs and outputs, and low CMOS standby power in the L version.
Writing to the device is accomplished by taking Chip Enable (CE) and Write Enable (WE) inputs LOW. Reading is performed by taking CE and Output Enable (OE) LOW while forcing WE HIGH. The device is available in standard 44-pin SOJ and TSOP II packages.
| Organization | 262,144 words x 16 bits |
|---|---|
| Maximum Access Time (fastest) | 12 ns |
| Low active power (max.) | 1430 mW |
| Low CMOS standby power (L version) | 2.75 mW |
| Data Retention Voltage | 2.0V |
The maximum access time for the CY7C1041-12 is 12 ns.
Writing is accomplished by taking Chip Enable (CE) and Write Enable (WE) inputs LOW.
