The CMSH1-20ML CMSH1-40ML are Surface Mount Silicon Schottky Rectifiers designed for applications were extremely low forward voltage drop is required.

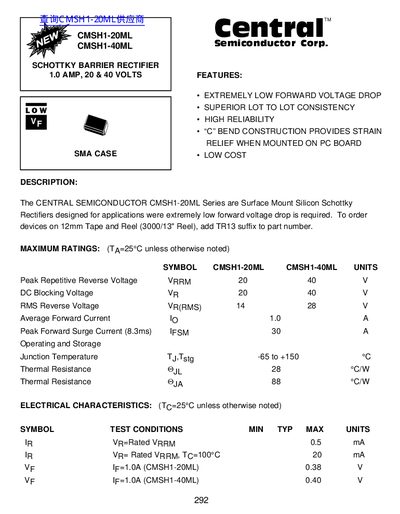

The document describes the CENTRAL SEMICONDUCTOR CMSH1-20ML Series as Surface Mount Silicon Schottky Rectifiers designed for applications where extremely low forward voltage drop is required. These devices feature superior lot to lot consistency, high reliability, and 'C' bend construction for strain relief when mounted on a PC board.
| Operating and Storage Junction Temperature Range | -65 to +150 °C |
|---|
The peak repetitive reverse voltage is 20 volts for the CMSH1-20ML model and 40 volts for the CMSH1-40ML model.
The average forward current rating is 1.0 ampere for both models.
