SKH00032BED MA2YD17 is a silicon based Schottky diode with high frequency rectification characteristics. Its reverse voltage VR = 100 V is guaranteed.

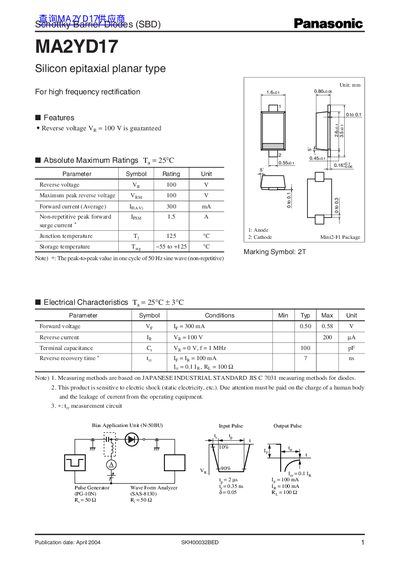

This document is a technical datasheet for the Panasonic MA2YD17, a silicon epitaxial planar type unit designed for high-frequency rectification. It specifies that the device operates with a guaranteed reverse voltage of 100 V and features a Mini2-F1 package.
| Reverse Voltage (VR) | 100 V |
|---|---|
| Maximum Peak Reverse Voltage (Vem) | 100 V |
| Forward Current (Average) (If(AV)) | 300 mA |
| Non-repetitive Peak Forward Surge Current (Ism) | 1.5 A |
| Junction Temperature (Tj) | 125 °C |
| Forward Voltage (VF) | 0.58 V Typ. |
| Reverse Current | 200 uA Max |
| Terminal Capacitance (Cc) | 100 pF |
| Reverse Recovery Time (tr) | 7 ns |
The device uses a Mini2-F1 Package.
Yes, it is designed specifically for high frequency rectification.
