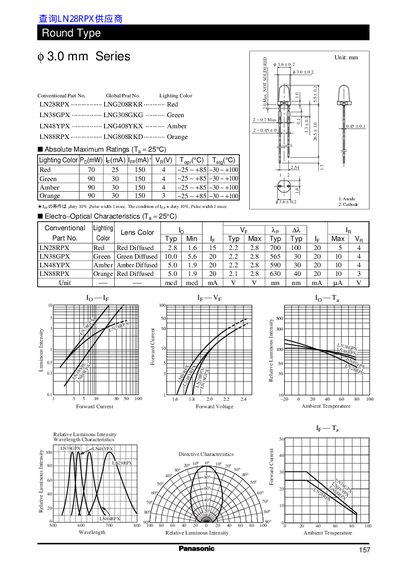

Panasonic Round Type φ3.0 mm Series LED Datasheet

This document is about the electro-optical characteristics, electrical characteristics, absolute maximum ratings of LN28RPX, LN38GPX, LN48YPX, LN88RPX. The document provides the electro-optical characteristics, electrical characteristics, absolute maximum ratings of the four products for reference.

Brand: Panasonic
Category: LED Driver Controller
Document type: Datasheet
Language: English
Pages: 1
File format: PDF
File size: 26 KB
Published: 05 June, 2012
Updated: 30 September, 2023
MD5 checksum: EA6B93567BE08A447EEBDB8A3E3DF585
PDF: Panasonic Round Type φ3.0 mm Series LED Datasheet PDF

About this manual

This document provides technical specifications for the Panasonic Round Type φ3.0 mm Series of light-emitting diodes (LEDs). It covers conventional part numbers including Red (LN28RPX), Green (LN38GPX), Amber (LN48YPX), and Orange (LN&8RPX) variants.

What's inside

Conventional Part No
Global Part No
Lighting Color
Absolute Maximum Ratings
Electro-Optical Characteristics
Wavelength Characteristics
Directive Characteristics
Forward Current
Ambient Temperature
Relative Luminous Intensity

Specifications

Diameter	3.0 mm
Part Number (Green)	LN38GPX
Part Number (Orange)	LN&8RPX
Max Forward Current (Red)	25 mA

Frequently asked questions

What is the maximum pulse width allowed for this series?

The condition specifies a maximum pulse width of 1 msec when the duty cycle is 10%.
