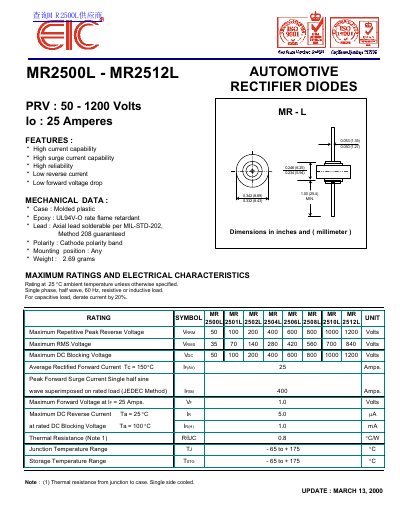

EIC MR2500L - MR2512L AUTOMOTIVE RECTIFIER DIODES PRV : 50 - 1200 Volts Io : 25 Amperes handbook

MR2500L-MR2512L automotive rectifier diodes have high current capability, high surge current capability, high reliability, low reverse current and low forward voltage drop.

Brand: EIC
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 2
File format: PDF
File size: 17 KB
Published: 11 July, 2012
Updated: 13 October, 2026
MD5 checksum: 54C399A17AEB060530B5CAC275D8250E
PDF: EIC MR2500L - MR2512L AUTOMOTIVE RECTIFIER DIODES PRV : 50 - 1200 Volts Io : 25 Amperes handbook PDF

About this manual

The document details the features of the MR2500L to MR2512L series of automotive rectifier diodes. Key features include high current capability, high surge current capability, low reverse current, and a low forward voltage drop. The mechanical data specifies that the case is molded plastic with UL94V-O rated epoxy and axial leads solderable per MIL-STD-202.

What's inside

Features
Mechanical Data
Maximum Ratings
Electrical Characteristics
Derating Curve
Forward Surge Current
Typical Forward Characteristics
Typical Reverse Characteristics

Specifications

Average Rectified Forward Current (IF(AV))	25 Amps.
Peak Forward Surge Current (IFSM)	400 Amps.
Maximum Forward Voltage	1.0 Volts
Junction Temperature Range	-65 to +175 °C

Frequently asked questions

What is the maximum reverse current at 25°C?

The maximum DC Reverse Current (IR) at Ta = 25°C is 5.0 µA.

What is the thermal resistance from junction to case?

The thermal resistance (RθJC) is 0.8 °C/W for single side cooling.
