MR2535L is an automotive transient suppressor. Its features are avalanche voltage 24 to 32 volts, high power capability, and increased capacity by parallel operation.

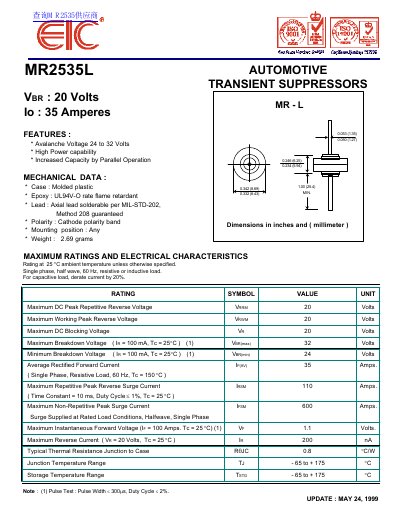

This document is a datasheet for the EIC MR2535L, an automotive transient suppressor device. It provides key specifications including a maximum DC Peak Repetitive Reverse Voltage of 20 Volts and an average rectified forward current rating of 35 Amps.
The datasheet outlines mechanical features such as UL94V-0 rated flame retardant epoxy molding and axial leads solderable per MIL-STD-202. It also lists maximum ratings for surge currents, thermal resistance, and operating temperature ranges.
| Maximum DC Peak Repetitive Reverse Voltage (VrRM) | 20 Volts |
|---|---|
| Average Rectified Forward Current (IFav) | 35 Amps. |
| Maximum Repetitive Peak Reverse Surge Current (IRsm) | 110 Amps. |
| Typical Thermal Resistance Junction to Case (RC) | 0.8 °CAV |
| Junction Temperature Range (Tj) | -65to+175 °C |
The device supports an average rectified forward current of 35 Amps under single-phase resistive load conditions.
The maximum breakdown voltage is rated at 32 Volts when tested with a current of 100mA.
The component can withstand a maximum non-repetitive peak surge current of 600 Amps.
