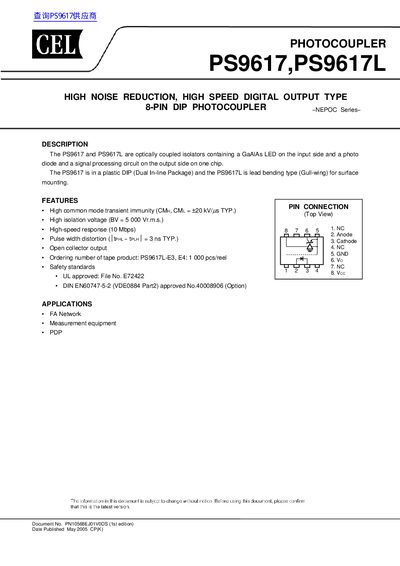

The PS9617 and PS9617L are optically coupled isolators containing a GaAlAs LED on the input side and a photo diode and a signal processing circuit on the output side on one chip. The PS9617 is in a plastic DIP (Dual In-line Package) and the PS9617L is lead bending type (Gull-wing) for surface mounting.
The document describes the PS9617 and PS9617L optically coupled isolators manufactured by California Eastern Laboratories (CEL). These devices contain a GaAlAs LED on the input side and a photodiode with signal processing circuitry on the output side. The PS9617 is available in a plastic DIP package, while the PS9617L features a lead bending type for surface mounting applications.
| High common mode transient immunity (CMH, CML) | +20 kV/us TYP. |
|---|---|
| Isolation voltage | 5 000 Vr.m.s. |
| High-speed response | 10 Mbps |
| Pulse width distortion | 3 ns TYP. |
| Operating Ambient Temperature | -40 to +85 C |
| Storage Temperature | -55 to +125 C |
The PS9617 is in a plastic DIP (Dual In-line Package).
The PS9617L is lead bending type (Gull-wing) for surface mounting.
They are used in FA Network, Measurement equipment, and PDP.
