BZV58C8V2~BZV58C200 (5W) is a silicon power Z-diode produced by Onsemi. It has a maximum power dissipation of 5W, a maximum operating voltage of 8.2~200V, and a plastic case with a DO-201 package. The weight is about 1g.

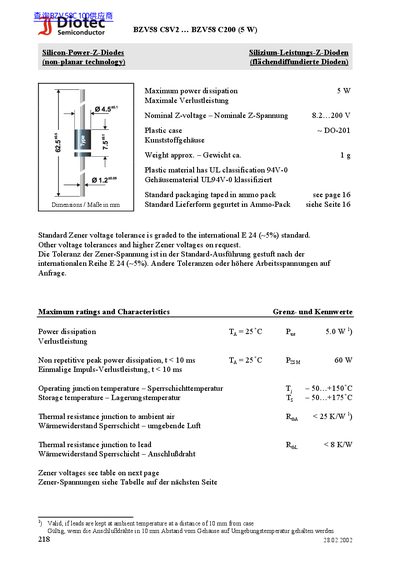

This document is a technical datasheet for the Diotec Semiconductor BZV58 series of non-planar technology silicon power zener diodes. The device features a plastic case with UL 94V-0 classification and is available in standard taped-and-reel packaging.
The datasheet provides maximum ratings, including power dissipation up to 3W (or 5W for specific variants), operating junction temperatures from -50°C to +150°C, and thermal resistance values. It also lists detailed electrical characteristics such as Zener voltage tolerance, dynamic resistance, temperature coefficient, and reverse current for various nominal voltages ranging from 8.2V to 200V.
| Thermal resistance junction to ambient | <25K/W |
|---|---|
| Thermal resistance junction to lead | < 8K/W |
The standard Zener voltage tolerance is graded to the international series 24 (~E96).
The diodes are housed in a plastic case.
