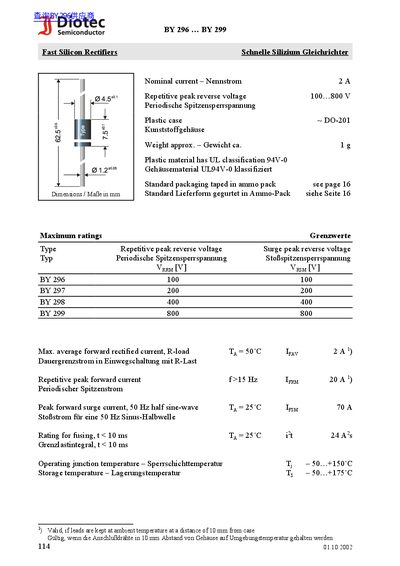

This document provides technical specifications for the Diotec BY 296, BY 297, BY 298, and BY 299 series of fast silicon rectifiers. The components are housed in a plastic DO-201 case with UL classification 94V-0.
| Nominal current | 2A |
|---|---|
| Case type | DO-201 Plastic case |
| UL classification | 94V-0 |
| Repetitive peak reverse voltage (BY 296) | 100 V |
| Repetitive peak reverse voltage (BY 297) | 200 V |
| Repetitive peak reverse voltage (BY 298) | 400 V |
| Repetitive peak reverse voltage (BY 299) | 800 V |
| Max. average forward rectified current | 2A |
| Peak forward surge current (50 Hz) | 10A |
| Operating junction temperature | -50...+150°C |
| Storage temperature | -50...+175°C |
| Forward voltage (typical) | <1.3V |
| Leakage current (typical) | <10pA |
| Forward recovery time | <1.0 ps |
The maximum average forward rectified current in a single-phase circuit with resistive load at Tj=50°C is 2A.
The peak forward surge current for a 50 Hz half sine-wave at Tj=25°C is 10A.
The device operates within a junction temperature range of -50 to +150 degrees Celsius.
