The PHE13002AU is a high-voltage, high-speed planar-passivated npn power switching transistor in the SOT533 envelope intended for use in high frequency electronic lighting ballast applications, converters and inverters, etc.

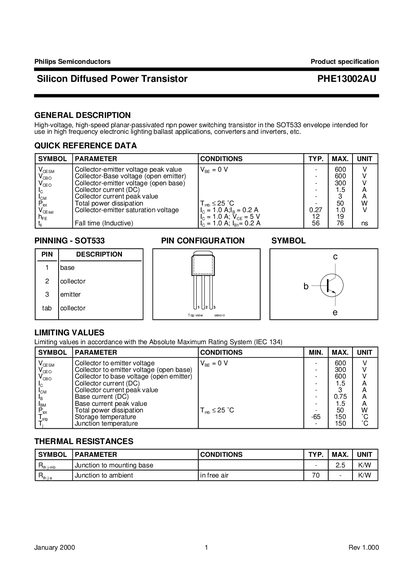

The document describes the PHE13002AU as a silicon diffused power transistor designed for use in high-frequency electronic lighting ballast applications, converters, and inverters. It is packaged in an SOT533 plastic single-ended package with three leads.
Key electrical characteristics include a collector-emitter voltage peak value of 600 V, a maximum DC collector current of 1.5 A, and a total power dissipation of 50 W at 25 °C. The datasheet provides detailed static and dynamic characteristic tables, thermal resistance data, and typical application curves for both resistive and inductive switching.
| Collector current (DC) (lc) | 1.5 A |
|---|---|
| Total power dissipation (tot) | 50 W |
| Package type | SOT533 |
The maximum junction temperature is 150 °C.
No, these products are not designed for use in life support appliances or systems where malfunction can result in personal injury.
