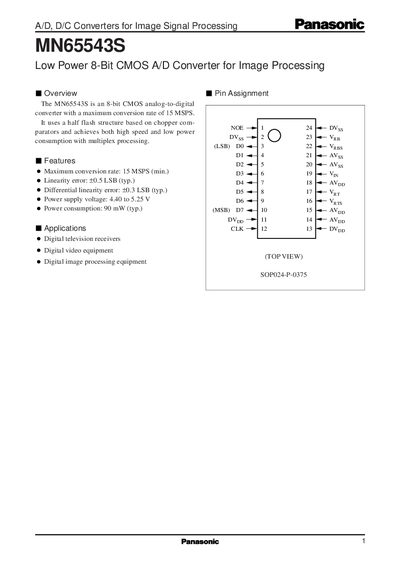

The MN65543S is an 8-bit CMOS analog-to-digital converter with a maximum conversion rate of 15 MSPS. It uses a half flash structure based on chopper comparators and achieves both high speed and low power consumption with multiplex processing.
The Panasonic MN65543S is an 8-bit CMOS analog-to-digital converter designed for high-speed and low-power applications in image signal processing. It utilizes a half flash structure based on chopper comparators and multiplex processing to achieve its performance specifications.
Key features include a maximum conversion rate of 15 MSPS, linearity error of +0.5 LSB (typical), and differential linearity error of +0.3 LSB (typical). The device operates with a power supply voltage between 4.40V and 5.25V and consumes approximately 90 mW of power.
| Resolution | 8 bit |
|---|---|
| Maximum conversion rate | 15 MSPS |
| Linearity error | +0.5 LSB (typ.) |
| Differential linearity error | +0.3 LSB (typ.) |
| Power supply voltage | 4.40 to 5.25 V |
| Power consumption | 90 mW (typ.) |
The maximum conversion rate is 15 MSPS.
The typical power consumption is 90 mW.
