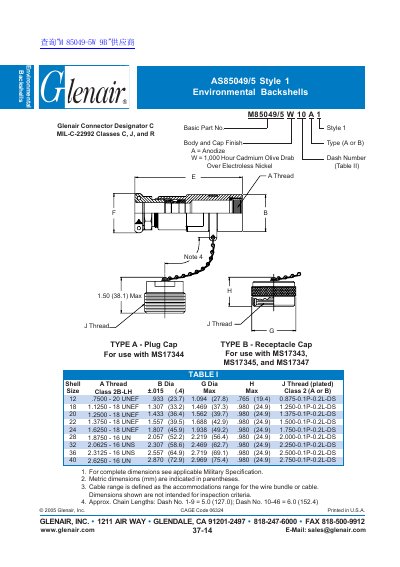

The document introduces the AS85049/5 Style 1 environmental backshells produced by Glenair, Inc. These backshells are suitable for MIL-C-22992 C, J, and R class connectors and have corrosion-resistant features.
This document provides technical specifications for the Glenair 37-14AS85049/5 Environmental Backshell. It covers two styles: Type A for plug caps and Type B for receptacle caps, designed for use with specific military connector series (MS17344, MS17343, etc.).
The datasheet includes detailed dimensional data in both Imperial and Metric units across various shell sizes (ranging from 12 to 40). It specifies the available body and cap finishes, including anodize and cadmium olive drab over electroless nickel. Additionally, it defines the cable range accommodations for different dash numbers.
| Military Specification | MIL-C-22992 Classes C, J, and R |
|---|---|
| Body Finish Option A | Anodize |
| Body Finish Option W | 1,000 Hour Cadmium Olive Drab Over Electroless Nickel |
| Approx. Chain Length (Dash No. 1-9) | 5.0 inches (127.0 mm) |
| Approx. Chain Length (Dash No. 10-46) | 6.0 inches (152.4 mm) |
This product is designed for use with MIL-C-22992 Classes C, J, and R.
Dash Numbers 1 through 9 have a length of 5.0 (127.0), while Dash Numbers 10 through 46 measure 6.0 (152.4).
Type A is for use with MS17344, while Type B is for use with MS17343, MS17345, and MS17347.
