This document introduces Glenair's Crimp Ring and Banding Backshells products. The Crimp Ring Backshell is a product for MIL-DTL-38999 Series III and IV, EN3645 connectors, with electroless nickel or 1000-hour cadmium olive drab over electroless nickel finish. The document provides detailed dimensions of different shell sizes and cable entries. The M85049/26-2 Crimp Ring is the reference model for this product. The document also provides information on thread specifications and diameters.

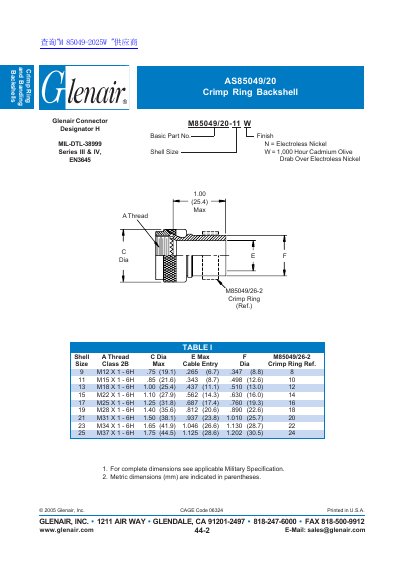

This document is a technical datasheet for the Glenair M85049/20 Crimp Ring Backshell. It provides specific designations and dimensional data compatible with MIL-DTL-38999 Series III & IV and EN3645 standards.
The sheet lists various shell sizes ranging from 9 to 25, specifying maximum cable entry dimensions (E) and reference crimp ring diameters (F). It also details thread classes and maximum diameters for different metric sizes.
| Basic Part No. | M85049/20-11 W |
|---|---|
| Compatible Standards | MIL-DTL-38999 Series III & IV, EN3645 |
| Thread Class (Imperial) | 2B |
| Shell Size Range | 9 to 25 |
The maximum outer diameter for Shell Size 19 is 1.046 inches.
