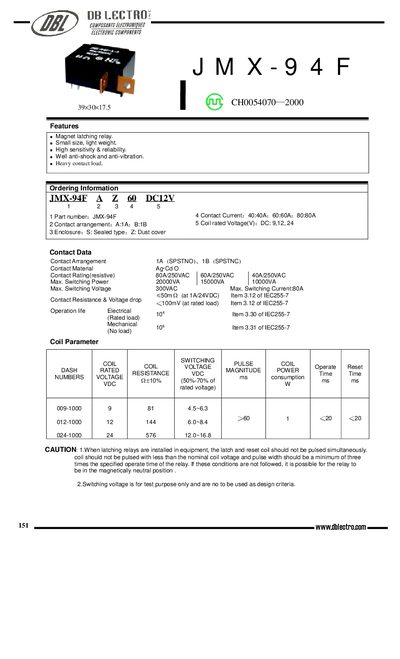

DB LECTRO JMX-94F Magnet Latching Relay Datasheet

This document is an introduction to the JMX-94F magnetic latching relay, which introduces the product's features, characteristics, specifications, and ordering information.

Brand: DBL
Category: RELAY
Document type: Datasheet
Language: English
Pages: 2
File format: PDF
File size: 187 KB
Published: 05 June, 2012
Updated: 30 September, 2023
MD5 checksum: F805173BF9251D2E4A10C1F8ED1062BC
PDF: DB LECTRO JMX-94F Magnet Latching Relay Datasheet PDF

About this manual

This document is a technical datasheet for the DB LECTRO JMX-94F, a small-sized magnet latching relay. Key features include high sensitivity, reliability, and resistance to shock and vibration. The device supports various contact current ratings (40A, 60A, 80A) and coil voltages of DC 9V, 12V, or 24V.

What's inside

Features
Ordering Information
Contact Data
Coil Parameter
Operation condition
Safety approvals
Dimensions

Specifications

Product Type	Magnet latching relay
Contact Current Rating	40A, 60A, or 80A
Coil Rated Voltage	DC 9V, 12V, or 24V
Max. Switching Current	80A
Ambient Temperature	-25~70C
Mass	33g

Frequently asked questions

What is the contact arrangement for the JMX-94F?

The relay offers two arrangements: 1A (SPSTNO) and 1B (SPSTNC).

What are the dimensions of the JMX-94F relay?

The dimensions are 39mm x 30mm x 17.5mm.

What safety approval does this relay have?

The relay has CCEE safety approval for a load of 80A/220VAC.
