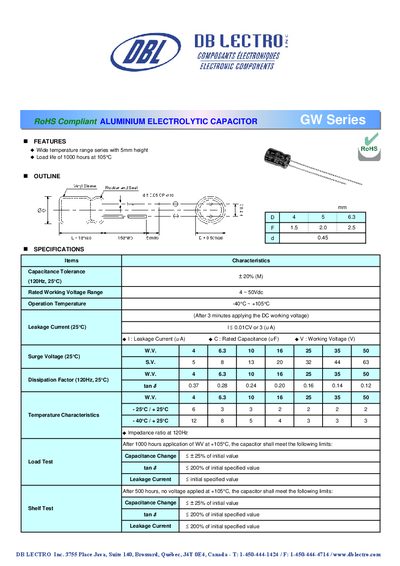

This document is the datasheet for the GW series aluminum electrolytic capacitors. The capacitors have an operating voltage range of 4 to 50 Vdc and a capacitance range of 4 to 63 μF. The capacitors have a wide temperature range and can operate from -40°C to +105°C.
The GW Series aluminium electrolytic capacitors are RoHS‑compliant components with a wide temperature range and a 1000‑hour load life at 105 °C. Key features include a 5 mm height, various working voltage options from 4 V to 50 V, and detailed performance data.
The document lists electrical specifications such as capacitance tolerance, leakage current, surge voltage, dissipation factor, and permissible ripple current, as well as mechanical dimensions for each voltage rating. It also defines test limits for aging and shelf life.
| Capacitance Tolerance | +20% (M) |
|---|---|
| Rated Working Voltage Range | 4 ~ 50 Vdc |
| Operation Temperature | -40 °C ~ +105 °C |
| Leakage Current (25 °C) | < 0.01 CV or 3 µA |
| Surge Voltage (25 °C) | 5 V ~ 63 V depending on working voltage |
| Dissipation Factor (120 Hz, 25 °C) | 0.37 ~ 0.12 depending on voltage |
| Dimensions (D × L) for 10 V | 4 × 5 mm |
| Permissible Ripple Current (120 Hz, 105 °C) for 10 V | 17 mA |
It operates from –40 °C to +105 °C.
The capacitor is rated for 4 V to 50 V DC.
Leakage current is less than 0.01 CV or 3 µA.
The 10 V capacitor measures 4 mm × 5 mm.
