JZC-22F, JZC-22F2 and JZC-22F3 miniature relays have the characteristics of small size, light weight, low power consumption, switching capacity up to 20A, and printed circuit board mounting. They are suitable for household electrical appliances, automation systems, electronic equipment, instruments and meters, etc.
The DBL JZC-22F series relays are compact, low‑weight devices with a switching capacity up to 20 A and a rushing current of 80 A. They are suitable for household appliances, automation systems, and various electronic equipment.

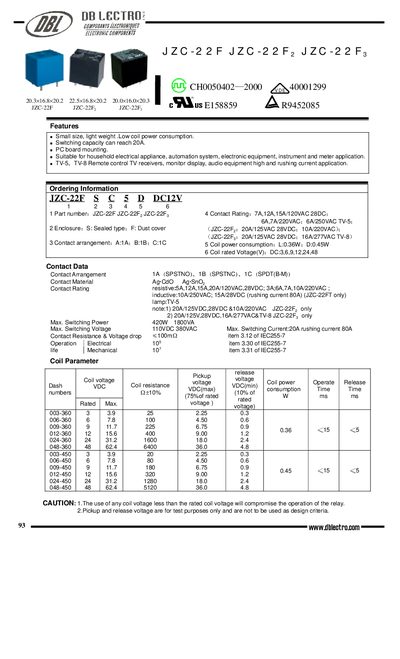

The document provides detailed ordering information, contact ratings, coil parameters, mechanical and electrical characteristics, safety approvals, and dimensional drawings for the JZC-22F, JZC-22F2 and JZC-22F3 variants.
| Switching capacity | 20 A |
|---|---|
| Coil power consumption | 0.36 W (L), 0.45 W (D) |
| Maximum switching power | 420 W / 1800 VA |
| Maximum switching voltage | 110 VDC / 380 VAG |
| Maximum switching current (rushing) | 20 A (80 A rushing) |
| Insulation resistance | 100 MΩ min at 500 VDC |
| Dielectric strength between contacts | 750 V (up to 1000 V) |
| Ambient temperature range | -40 °C to 70 °C (85 °C max) |
| Mass | 10 g – 16 g |
| Safety approvals | UL, VDE, CCEE |
The coil power consumption is 0.36 W for type L and 0.45 W for type D.
The relay can switch up to 20 A continuously with a rushing current of 80 A.
It is approved by UL, VDE and CCEE.
The JZC-22F2 dimensions are 20.2 mm × 16.8 mm × 20.2 mm.
