KZ series capacitor products technical parameters, including rated working voltage, rated capacitance, tolerance, leakage current, dissipation factor, temperature characteristics, load life characteristics, soldering heat resistance etc.

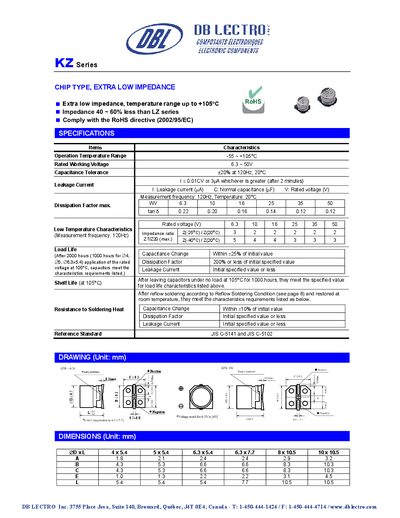

The KZ Series from DB LECTRO are extra‑low‑impedance aluminum electrolytic capacitors designed for operation from –55 °C to +105 °C with rated voltages between 6.3 V and 50 V. The datasheet provides detailed electrical characteristics, dimensions, ripple‑current limits, and RoHS compliance information.
The document includes tables of part numbers, case sizes, impedance values, and recommended mounting and reflow soldering procedures. It also outlines general design precautions, environmental limits, and the expected life equations for these capacitors.
| Operation Temperature Range | -55 °C ~ +105 °C |
|---|---|
| Rated Working Voltage | 6.3 V ~ 50 V |
| Capacitance Tolerance | +20 % at 120 Hz, 20 °C |
| Impedance Ratio (‑25 °C / 20 °C) | 2 (‑25 °C) / 3 (20 °C) |
The KZ Series capacitors operate from –55 °C up to +105 °C.
Yes, the KZ Series complies with the RoHS directive (2002/95/EC).
They are rated for voltages between 6.3 V and 50 V.
