Featured RELAY manuals
Omron G3VM-61A1/D1 MOS FET Relay Datasheet
The Omron G3VM-61A1/D1 is a compact MOS FET relay designed for switching small analog signals with optical isolation between input and output.
The datasheet lists key electrical characteristics such as a 2.5 kV AC isolation voltage, leakage current below 1 µA, LED forward current up to 50 mA, and an operating temperature range from –55 °C to +125 °C. This manual is written in Chinese.
Covers: Recommended Operating Conditions · Electrical Performance · LED Forward Current · Continuous Load Current · Isolation Voltage · Package Information
Omron G5LA Power Relay Datasheet
This document presents the technical specifications of Omron's G5LA series power relays, including electrical ratings such as a 10 A, 250 VAC rating and a low power consumption of 360 mW. It also lists mechanical details like a weight of 75 g and the operating temperature range.
Additional information covers performance characteristics, safety certifications (UL508, CSA22.2, VDE0435) and contact ratings for various voltage options. The datasheet is intended for engineers and designers selecting the appropriate relay for industrial control applications. This manual is written in Japanese.
Covers: Performance · Safety Standards · Electrical Ratings · Contact Ratings · Mechanical Dimensions · Environmental Ratings

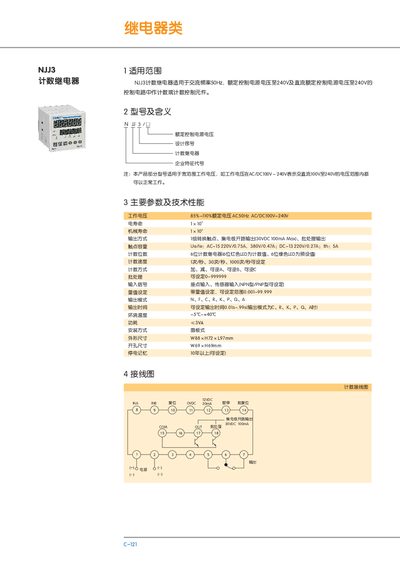

NJJ3 Counting Relay Manual
This manual describes the NJJ3 counting relay, which can be used in AC 50 Hz and AC/DC control circuits with voltages up to 240 V. It details the relay's functions, counting modes, and wiring connections.
The document includes technical parameters, physical dimensions, installation guidelines, and timing diagrams for various counting and output modes, helping users configure and maintain the device. This manual is written in Chinese.
Covers: Scope · Model and Meaning · Main Parameters and Technical Performance · Wiring Diagram · Physical Dimensions and Installation · Counting Mode Timing Diagram
Latest RELAY manuals
American Zettler AZ832 RELAY
FEATURES
American Zettler AZ853 RELAY
FEATURES
American Zettler AZ852 RELAY
FEATURES
American Zettler AZ762 RELAY
FEATURES
American Zettler AZ5 RELAY
FEATURES
American Zettler AZ761 RELAY
FEATURES
American Zettler AZ742 RELAY
FEATURES
American Zettler AZ830P RELAY
FEATURES High sensitivity, 86 mW pickup Low profile DIP package Meets FCC Part 68.302 1500 V lightning surge Meets FCC Part 68.304 1000 V dielectric Epoxy sealed for automatic wave soldering and cleaning DC coils to 48 VDC High switching capacity, 60 W, 125 VA Fits standard 16 pin IC socket UL file E43203
American Zettler AZ743 RELAY
The American Zettler AZ743 RELAY is a low cost, epoxy sealed relay with a 10 Amp switching capacity. It is available in AC and DC coils and has Class B (130°) and Class F (155°) versions.
American Zettler AZ851 RELAY
FEATURES Microminiature size: Height: .244 inches (6.2 mm); Length: .559 inches (14.2 mm); Width: .366 inches (9.3 mm) High sensitivity, 79 mW pickup Meets FCC Part 68.302 1500 V lightning surge Surface mount type with
American Zettler AZ850 RELAY
FEATURES Microminiature size: Height: .197 inches (5 mm); Length: .551 inches (14 mm); Width: .354 inches (9 mm) High sensitivity, 79 mW pickup Monostable and bistable (latching) single coil and two coil versions available Meets FCC Part 68.302 1500 V lightning surge DIP terminal layout, fits 10 pin IC socket Epoxy sealed for automatic wave soldering and cleaning UL, CUR file E43203
Omron G3VM-61A1/D1 MOS FET Relay Datasheet
Datasheet 2 pages · 693 KB · ZHThis Omron G3VM-61A1/D1 MOS FET relay datasheet provides electrical specifications, operating conditions, and wiring information.
Omron G5LA Power Relay Datasheet
Datasheet 3 pages · 717 KB · JAThe Omron G5LA power relay datasheet provides electrical ratings, performance data, safety standards, and mechanical dimensions.
NJJ3 Counting Relay Manual
User Manual 4 pages · 354 KB · ZHThe NJJ3 counting relay manual provides specifications, wiring diagrams, and operation instructions for AC/DC control circuits.
Which document do I need?
Datasheet
Ratings, dimensions and ordering codes, for selection and design work.
User Manual
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in RELAY manuals
What is the maximum isolation voltage of the G3VM-61A1/D1 relay?
It can withstand up to 2.5 kV AC between input and output.
What is the leakage current when the relay output is open?
The leakage current is less than 1 µA.
What is the rated current and voltage of the G5LA relay?
The G5LA relay is rated for 10 A at 250 VAC.
How much power does the G5LA relay consume?
The relay consumes 360 mW of power.
How many counting digits does the relay support?
The relay supports 6 counting digits, shown by six red LEDs for count and six green LEDs for preset values.
How is the relay installed?
It is a panel‑mount type with dimensions W 88 mm × H 72 mm × L 97 mm and mounting hole size W 69 mm × H 69 mm.
