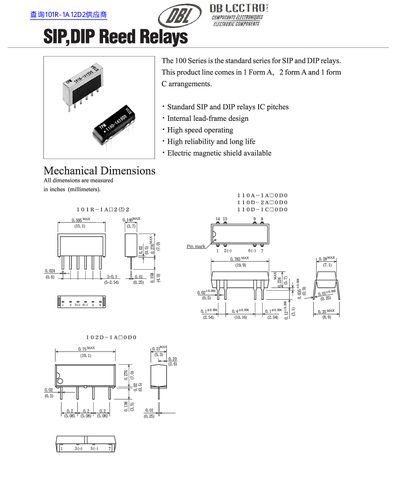

This handbook describes DBL's SIP and DIP reed relay families, covering the 101R, 102D, and 110D series in various form‑A and form‑C configurations. It includes mechanical dimensions, coil specifications, contact ratings, and environmental limits.
Key data such as nominal coil voltages, switching voltage and current limits, insulation resistance, and operating temperature ranges are presented in tabular form, along with ordering codes and optional diode configurations.
| Operating Temperature Range | -20°C to +60°C |
|---|---|
| Storage Temperature Range | -40°C to +80°C |
The 101R series can be ordered with coil voltages of 5 VDC, 12 VDC, or 24 VDC.
The relays operate from –20 °C up to +60 °C.
A relay can be configured with either one capsule or two capsules.
