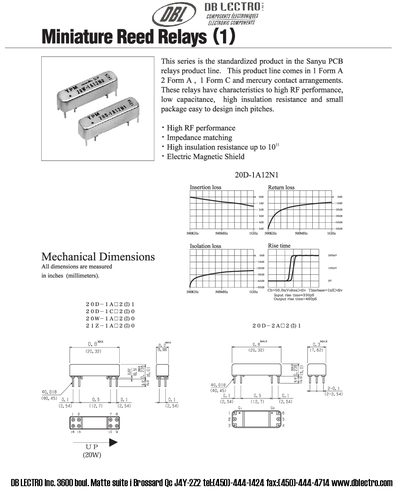

The DBL miniature reed relays are offered in several form factors, including 1 Form A, 2 Form A, 1 Form C, and mercury contact arrangements. These relays are designed for high RF performance, low capacitance, high insulation resistance, and a compact package suitable for PCB mounting.
The datasheet lists detailed coil specifications such as nominal voltages (5 V, 12 V, 24 V), coil resistance values, and insulation resistance up to 10 GΩ. It also includes environmental ratings, operating temperature ranges from –20 °C to +60 °C, storage limits, and mechanical dimensions for each model variant.
| High insulation resistance | up to 10 GΩ |
|---|---|
| Nominal coil voltage | 5 V, 12 V, 24 V |
| Coil resistance | 160 Ω–2000 Ω at 20 °C |
| Operating temperature range | –20 °C to +60 °C |
The relays are offered in 1 Form A, 2 Form A, 1 Form C, and mercury contact arrangements.
Nominal coil voltages are 5 V, 12 V, and 24 V.
