The HL Series Aluminum Electrolytic Capacitor is a product launched by DB LECTRO. It has a load life of 5000 hours and is widely used in electronic ballast circuits, switching power supplies, and automotive applications.
The DBL HL SERIES aluminium electrolytic capacitor is RoHS compliant and designed for long‑life applications such as electronic ballast circuits, switching power supplies, and automotive use. Key features include a load life of 5000 hours at 105 °C, safety‑vent construction, and a vinyl‑sleeve rubber seal.

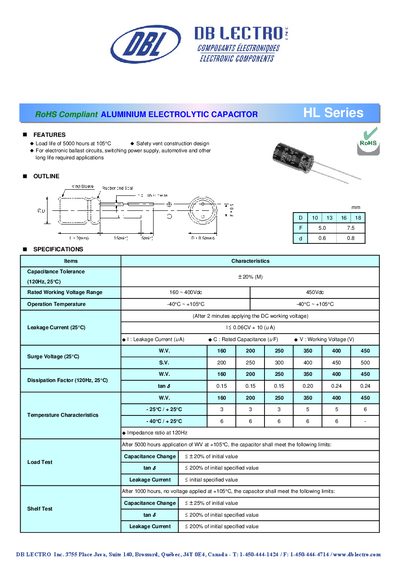

The datasheet lists electrical characteristics such as capacitance tolerance, rated working voltage, operating temperature range, leakage current, surge voltage, dissipation factor, and permissible ripple current, together with mechanical dimensions for various voltage ratings.
| Capacitance Tolerance | +20 % (M) |
|---|---|
| Rated Working Voltage Range | 160 ~ 400 Vdc |
| Operation Temperature | -40 °C ~ +105 °C |
| Leakage Current (25 °C) | < 0.06 CV + 10 µA |
| Surge Voltage (25 °C) | 200 ~ 500 V |
| Dissipation Factor (120 Hz, 25 °C) | tan 0.15 ~ 0.24 |
| Permissible Ripple Current (100 kHz, 25 °C) | see table in datasheet |
The capacitor is rated for a working voltage range of 160 V to 400 V dc.
It can operate from –40 °C up to +105 °C.
The capacitance tolerance is ±20 % (M).
Yes, the DBL HL SERIES aluminium electrolytic capacitor is RoHS compliant.
