M4S 12 H A W relay is a high sensitivity relay. It has 1.5kV surge and 1000VAC insulation grade. It is fully sealed (immersion cleaning). It has bifurcated contact and is used in telecommunication equipment, office equipment, security alarm systems, measuring instruments, medical monitoring equipment, audio visual equipment, flight simulators and sensor control.
The DBL M4S is a sealed relay with high‑sensitivity DIL pitch terminals and bifurcated contacts, suitable for medical, audio‑visual, telecommunication, security and other equipment. It conforms to FCC Part 68 and IEC standards for surge and dielectric strength.

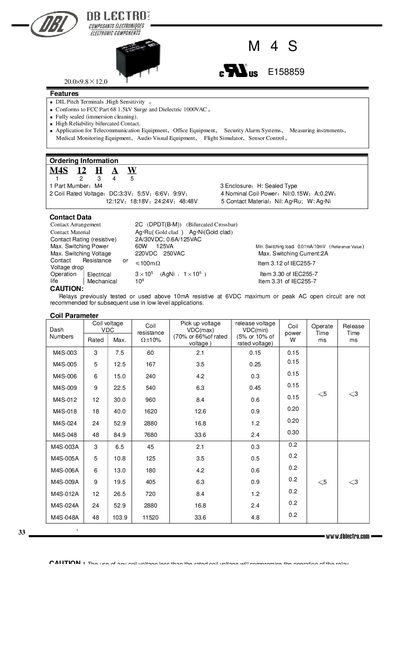

The datasheet provides detailed coil parameters, contact ratings, mechanical and electrical characteristics, dimensions, safety approvals and wiring diagrams for proper integration into devices.
| Nominal Coil Power | 0.15 W (type Nil), 0.2 W (type A) |
|---|---|
| Maximum Switching Voltage | 220 VDC, 250 VAC |
| Maximum Switching Current | 2 A |
| Temperature Range | -40 °C to 90 °C |
| Mass | 4.59 g |
| Dimensions | 20.0 mm × 9.8 mm × 12.0 mm |
| Safety Approvals | UL & CE |
The relay is rated for a maximum switching current of 2 A.
The relay is approved under UL and CE (listed as UL&CUR).
